"Evaporating rapidly, passing off readily in the form of vapor"

There are two basic requirements when sampling volatile chemicals:

  • The sample must be representative
  • The sample must be safe for the operator, as well as for lab personnel and anyone else in proximity to the sample, as well as for the environment and for handing in ways that adhere to the best industrial hygiene practices.

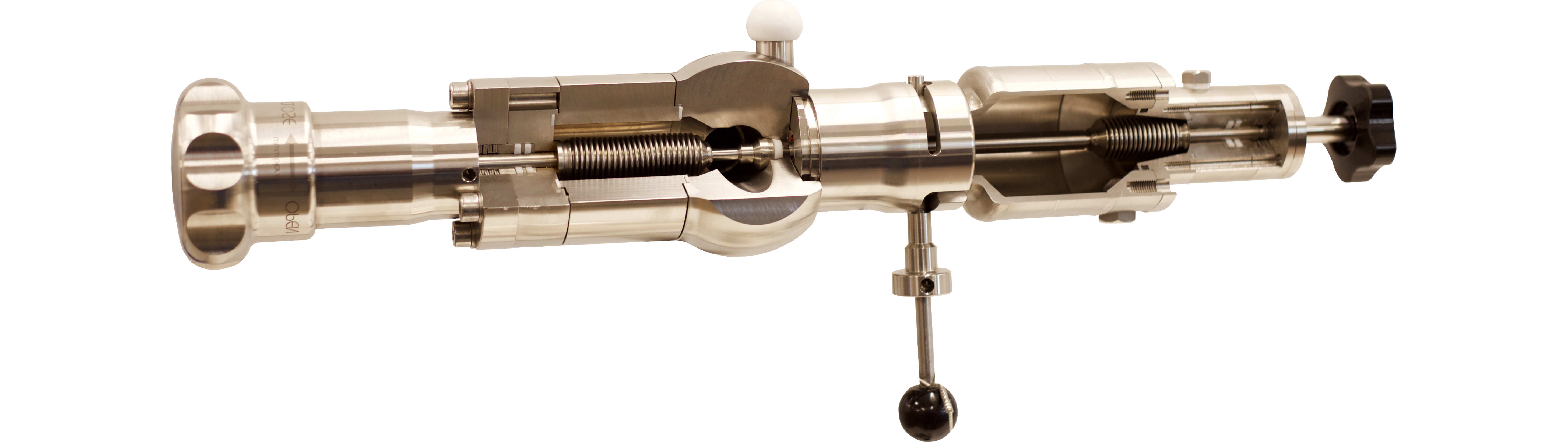

Sampling volatile chemicals is typically done in sample cylinders. A sample cylinder is a pressure-retaining device for gas, liquefied gas and samples with high vapor pressure.

Sample cylinders are commonly called "Sample Bombs" in the industry, although this term is becoming less common due to its negative connotation.

BIAR is the only manufacturer that can provide Sample Cylinders with bellows seal for increased safety and zero-emission.


Typical Sample Container Line Drawing

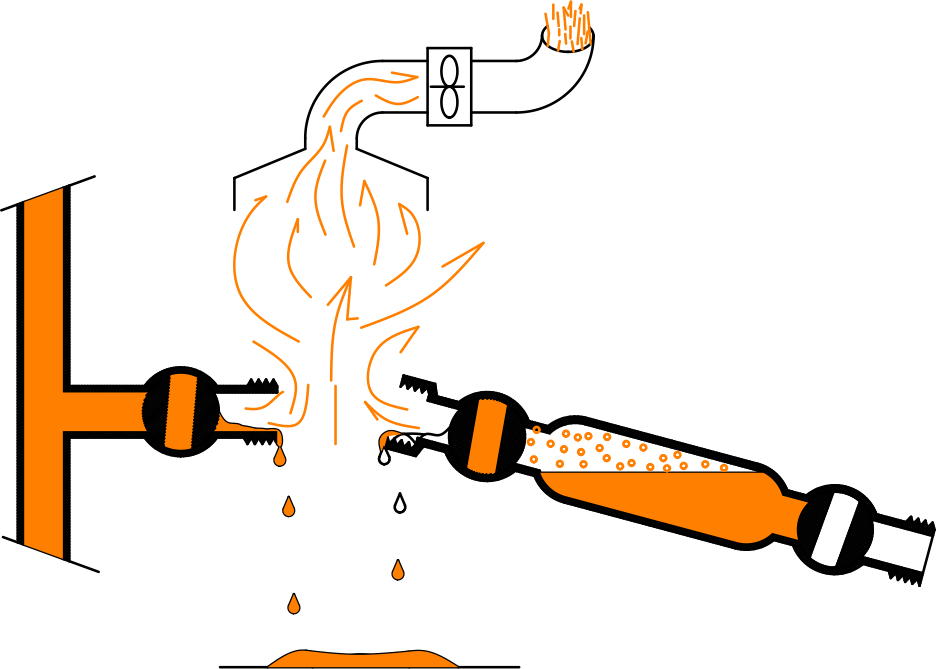

Illustration of problem with closed loop system

Typical layout of sample container and sampling connections have been specified in ASTM D1265 Standard Practice for Sampling Liquefied Petroleum (LP) Gases since the 1950s. Although these systems are still widely used in different industries, there is general consensus to move toward safer, greener and more efficient technologies.



Although, manufacturers of Sample Panels and Closed Loop Sampling Systems have been trying to help customers meet sampling challenges by using traditional Sample Cylinders, some problems remain. They include:

  • Complex Systems
  • Additional Risks
  • Industrial Hygiene Concerns

Click here to download an overview of the drawback related to using Sample Panels and Closed Loop Sampling Systems.



A Safe & Simple Alternative to Sample Panels

and Closed Loop Systems

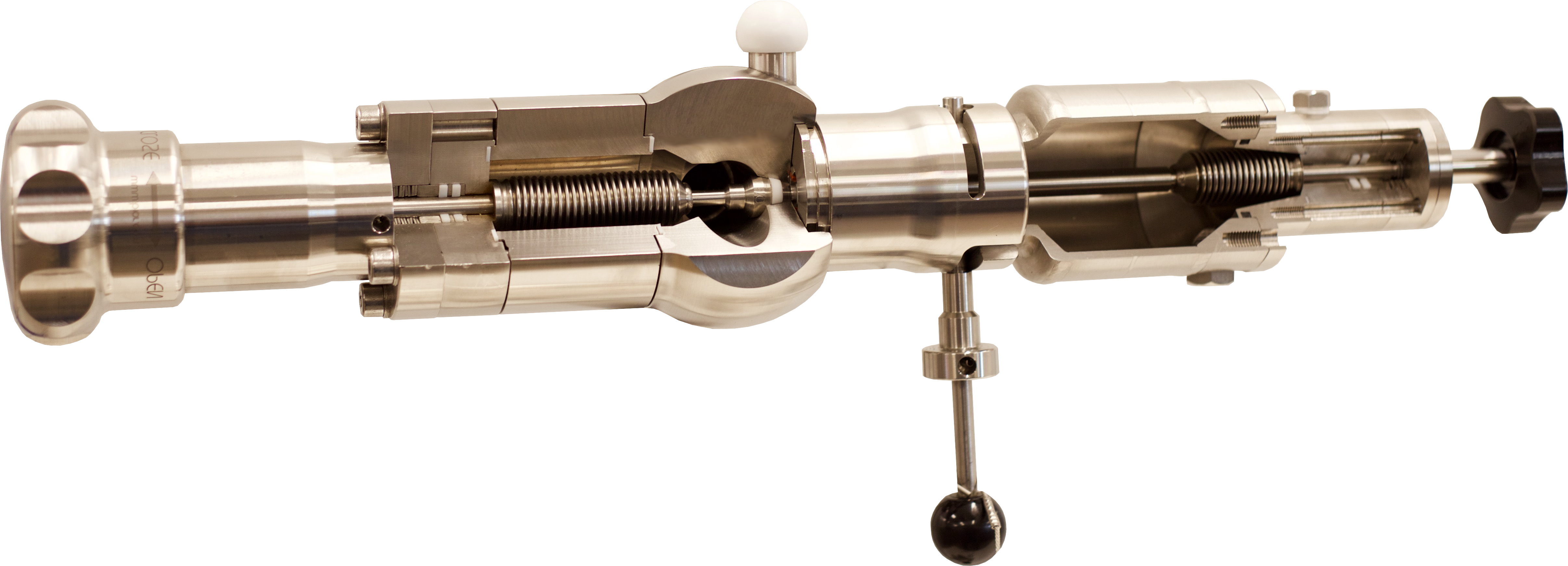

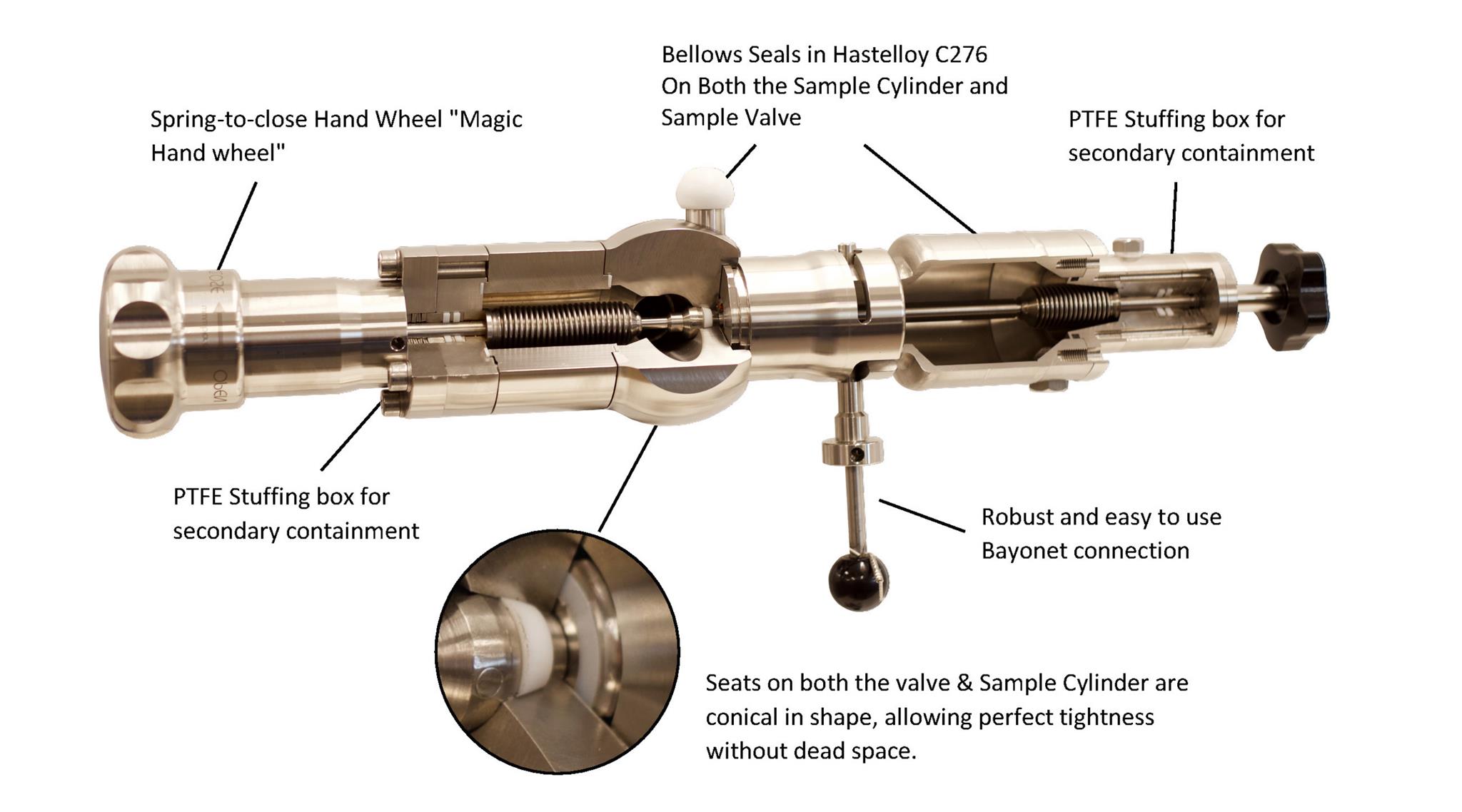

BIAR has designed a simple operator-friendly solution to grab the most volatile and toxic chemicals in a safe and environmentally-friendly way. It is an engineered system without dead space.

Advantages of BIAR Sampling Systems

  • Directly representative samples -- the first time, every time
  • Simple: minimum number of steps required
  • Safe, robust design
  • Fail-safe spring-to-close
  • No flushing/purging required
  • Minimal number of potential leak points
  • Suitable for toxic/lethal chemicals

It's actually much easier to make a very very complex solution to a problem than to find a wickedly simple, robust solution to a problem."

- Taber MacCallum, Founder, Co-CEO & CTO at Space Perspective



Animation of alternative to closed loop system

Sampling Liquefied Gas such as Liquid Chlorine

Sampling Liquefied Gas and Hazardous Chemicals Into a Sample Cylinder

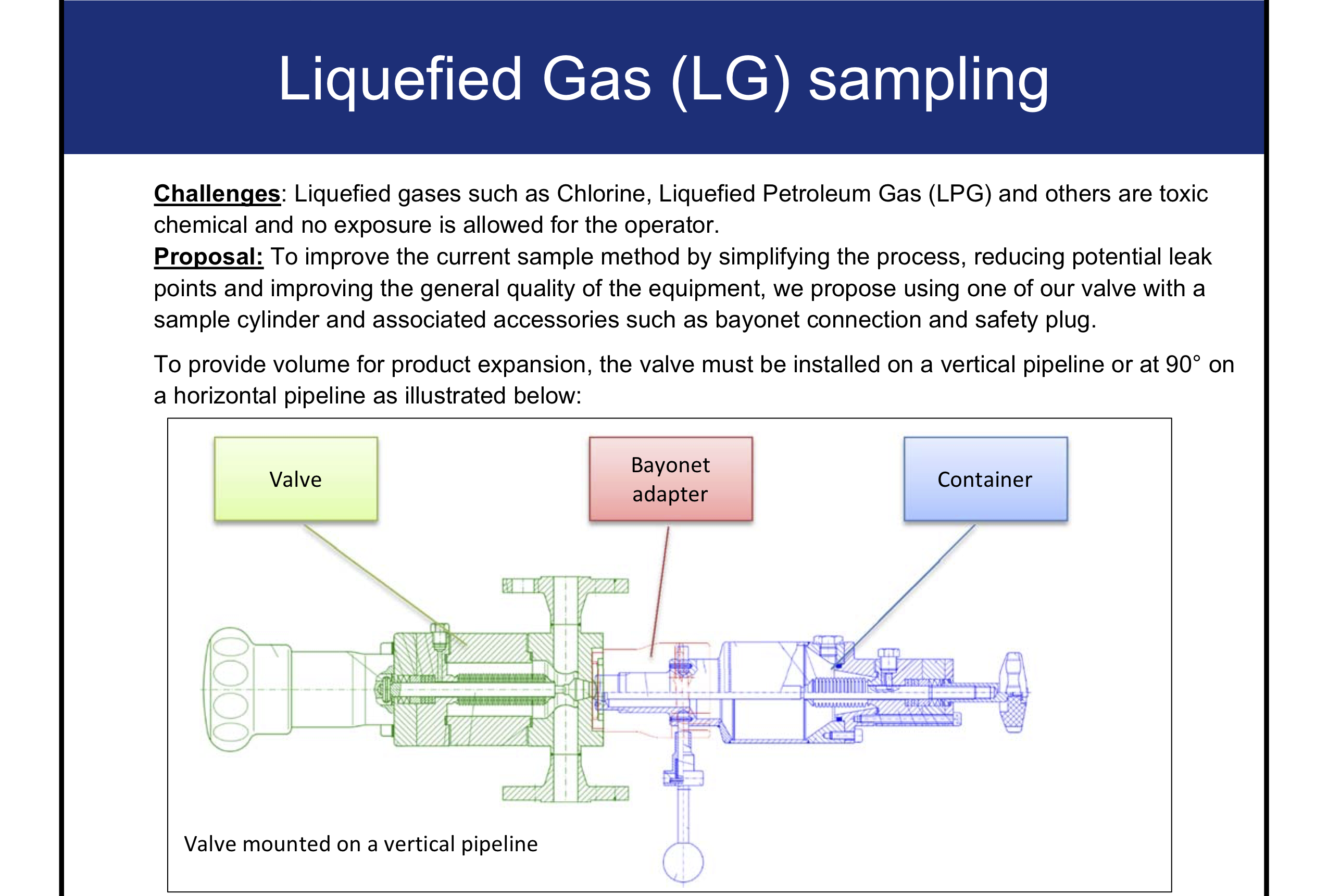

White paper on Liquefied Gas (LG) sampling

White Paper: Liquefied Gas (LG) Sampling


Vapor Space for Product Expansion...without an Outage Tube



When used horizontally, BIAR's COLUMBIA-LY sample containers create a vapor space that is necessary for the volumetric expansion of the liquid.

Use

Outage is the vapor space in the cylinder expressed as a percentage of the total volume of the cylinder.

% outage = (vapor space / total volume) X 100

BIAR Sample Cylinders provide 40% outage as a standard feature.



Illustration of vapor space for product expansion

Easy and Safe Sample Extraction Analysis

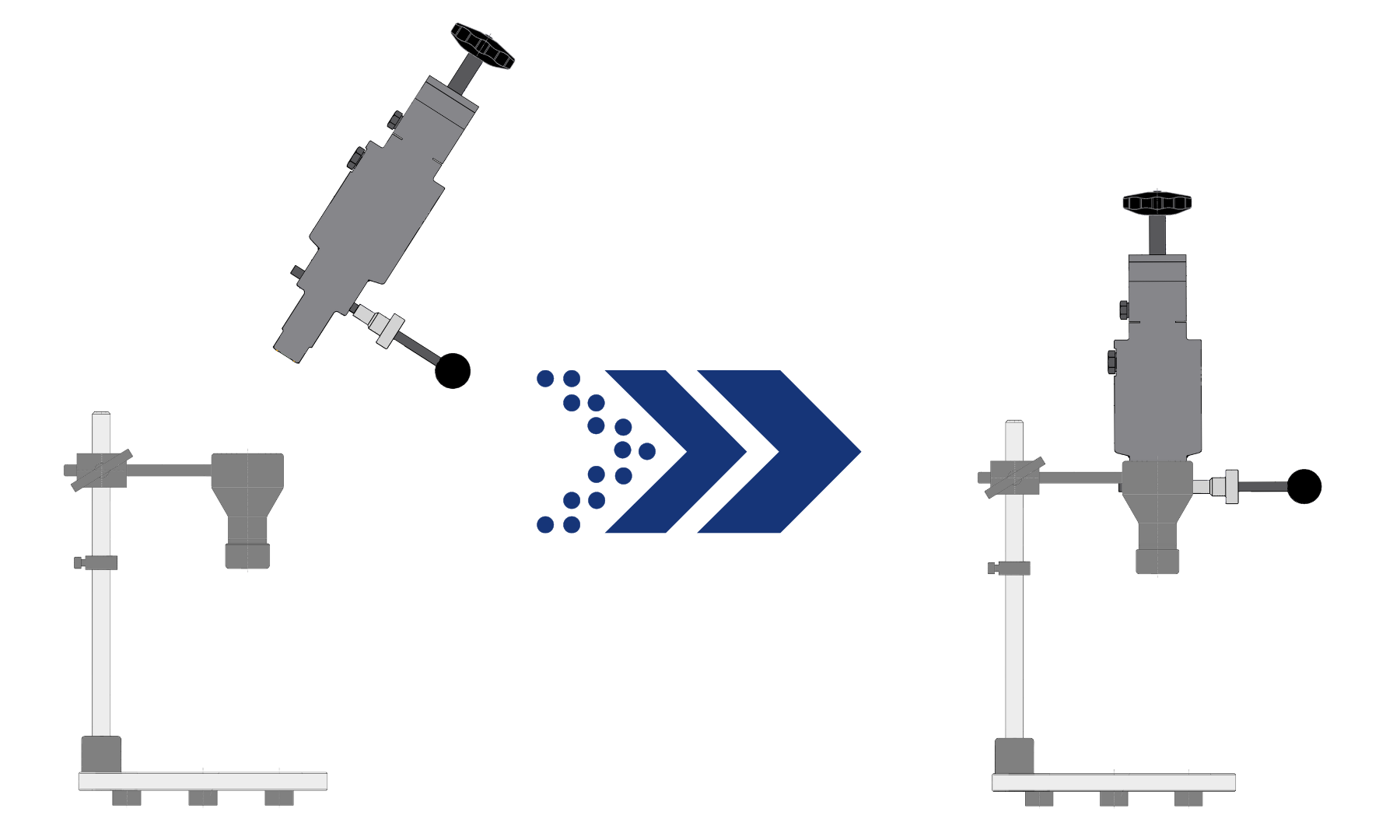

The adjustable height laboratory stand is used to depressurize the Sample Cylinder and transfer the sample to a Gas Chromatography (GC) System, Karl Fischer titration or other analysis equipment.

Sample cylinder in a refinery lab

Example of how the Sample Cylinder is used in the lab under the hood in a refinery

Sample system illustration
Sample valve illustration

Sampling "Clean" Liquids or Gases

For sampling clean liquids or gases in a simple and safe way, a piston-injector is an alternative. This device works especially well when pressure is low or the line is under vacuum pressure.

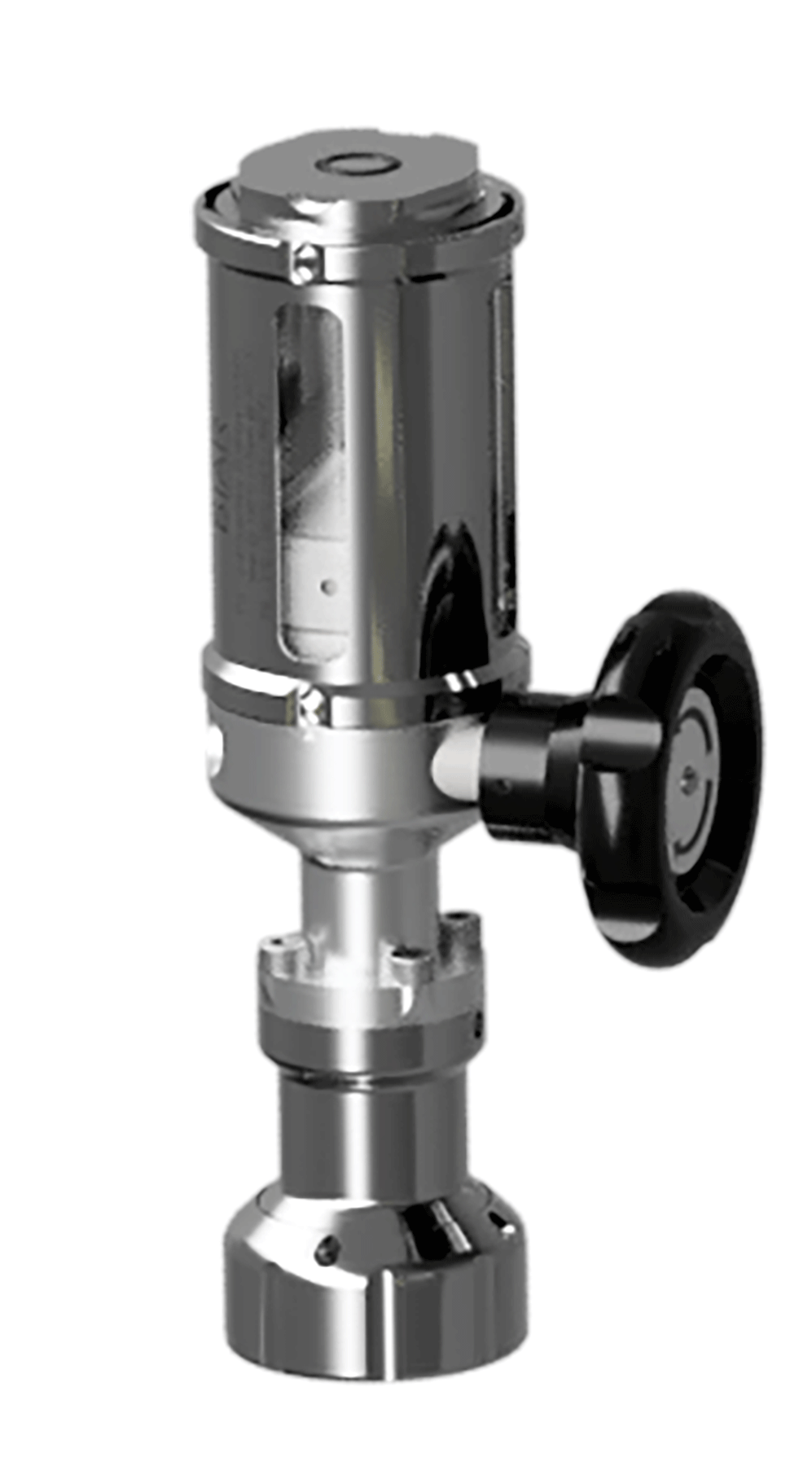

Sample cylinder with piston-injector

Another Example of Sample Cylinders:

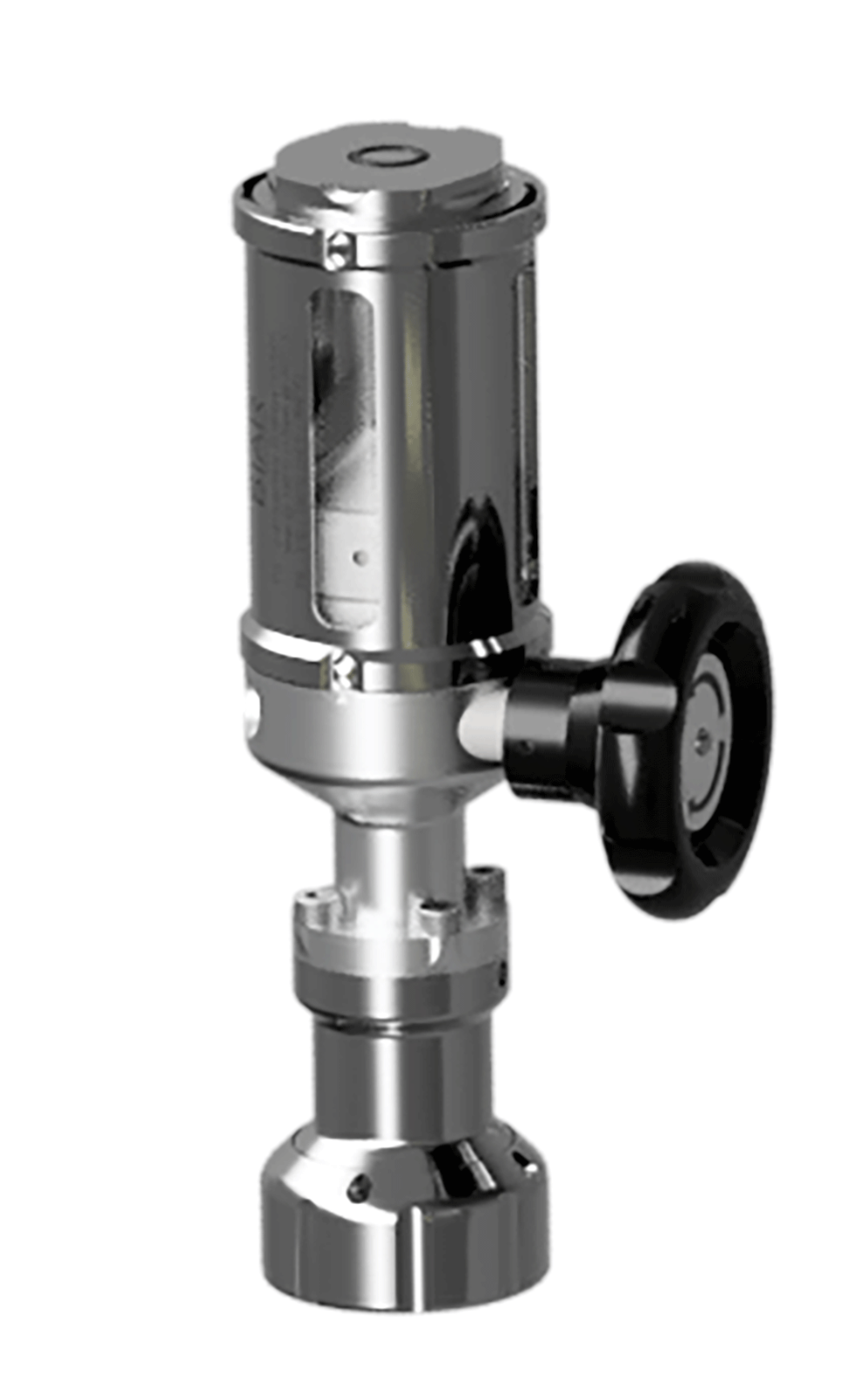

Columbia LY-2 Chamber
MicrosoftTeams-image

Originally developed to sample Liquid Phosgene, our Columbia LY-2 chambers are also used to sample anhydrous HF. Because anhydrous HF is a lethal product, absolutely no exposure is allowed. One way to reduce anhydrous HF’s toxicity is to mix it with water so it becomes aqueous HF.

The dual-chamber Sample Cylinder allows HF to be mixed with water without releasing fumes.
